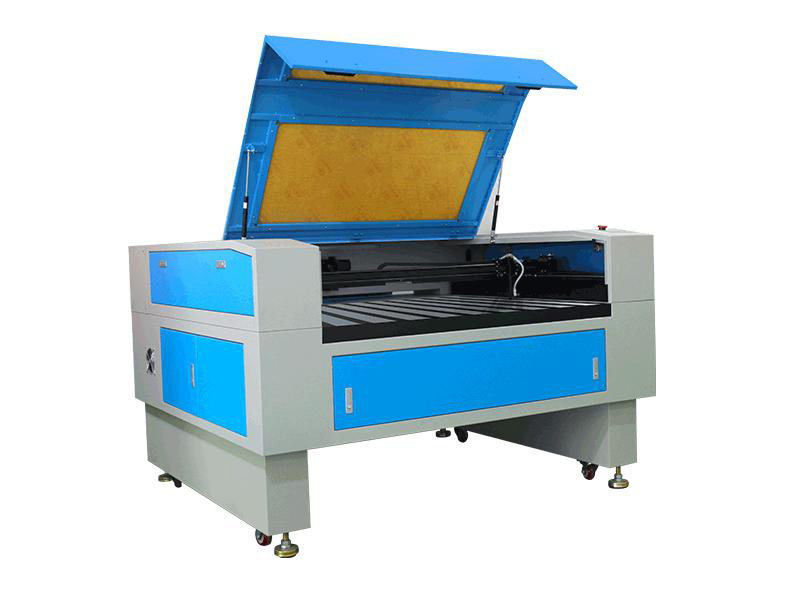

CO2 Laser Engraving Cutting Machine
CO2 laser engraving cutting machine adopts advanced DSP control technology with strong anti-interference ability, providing fast cutting speed and high cutting precision. Designed with USB port, the processing data and files can be efficiently and directly transmitted to the laser machine by USB sticks. This laser equipment comes with a 3D simulation software for laser non-metal and metal cutting. One object can be cut and engraved according to different laser parameters to create a multi-layered effect. Featuring with breakpoint memory function, engraving continuation from the breakpoint can be realized after power on.
- The laser cutter engraver comes with a high quality laser head, ensuring fast cutting speed and high cutting precision.
- The laser equipment combined with laser cutting and laser engraving can be optionally designed with a CCD camera that supports positioning the material to precisely contour cut graphics.
- The laser machine for engraving, cutting and marking adopts specially designed laser cutting and engraving software, which supports various file formats such as DXF and PLT. Easy operation is realized due to the user-friendly interface.

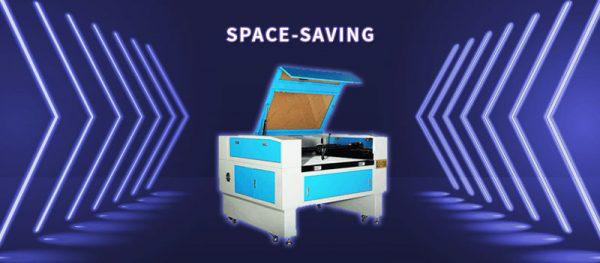

- Space saving
The laser cutter engraver features a compact size, reducing the space occupied in the factory.
- Always reliable
The laser cutting engraving machine is designed with superior quality stepper motor, driver, guide rail, long-life lenses, and sealed laser tube for delivering stable and high power laser beam, ensuring high cutting accuracy and fast cutting speed.

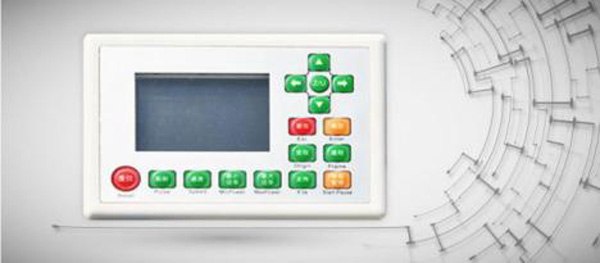

- Easy to use
Equipped with an intuitive control panel, the CO2 laser machine can be easily operated. All the laser cutting and engraving parameters are clearly displayed on the control panel, allowing for convenient adjustment according to cutting requirements.
- High performance
Adopting DSP control technology with strong anti-interference ability, the CO2 laser engraving cutting machine features high processing speed, high cutting accuracy and high stability.
| Model | GLC-6040(Single head）GLC-9060/1080/1290/1490/1610/181（Optional double head） |
| Laser Type | Co2 |
| Laser Power | 60W/80W/100W/130W/150W（Optional） |
| Engraving Speed | 0-64 m/min |
| Cutting Speed | 0-36 m/min |
| Repeat Position Accuracy | ±0.05mm |
| Moving System | CNC control system |
| Cooling system | Water-cooling and protection system |
| Overall Power Consumption | ≦1250w |
| Working Voltage | 220+10% 50Hz(60Hz) |
| Operating Temperature | 0-45°C |
| Operating Humidity | 5%-95% |
| Controlling Software | Glorystar Laser software |
| Graphic Supported Format | CAD, BMP, JPG.PNG, TIF, PCX, TAG.IOO.GIF, PLT AI DXF |
| Model | Working Area: |
| GLC-6040 | 600mmX400mm |
| GLC-9060 | 900mmX600mm |
| GLC-1080 | 1000mmX800mm |
| GLC-1290 | 1200mmX900mm |
| GLC-1490 | 1400mmx900mm |
| GLC-1610 | 1600mmX1000mm |
| GLC-1810 | 1800mmX1000mm |
