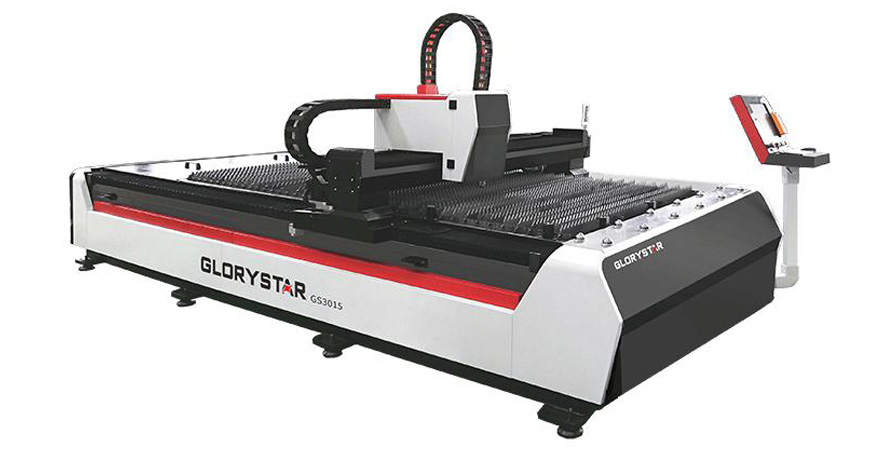

GS Fiber Laser Cutting Machine
GS series single table fiber laser cutting machine features open design, allowing for easy access from all four sides. This makes loading and unloading from all four sides even during processing. This metal cutting machine is suitable for large format materials. This metal cutting machine comes with an optional power range of 500W-4000W, with a maximum working area of 6m x 2m.
Features- The use of an IPG laser leads to a strong cutting capacity and long service life.

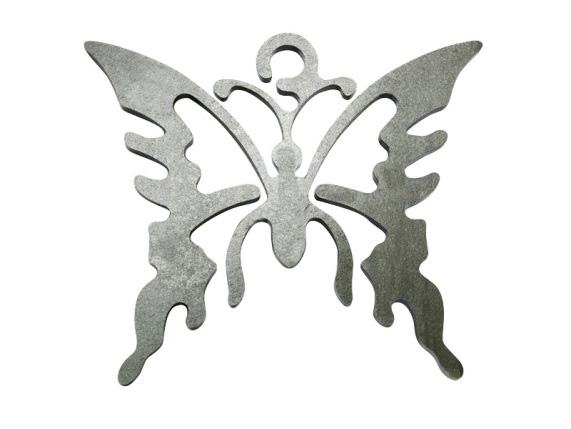

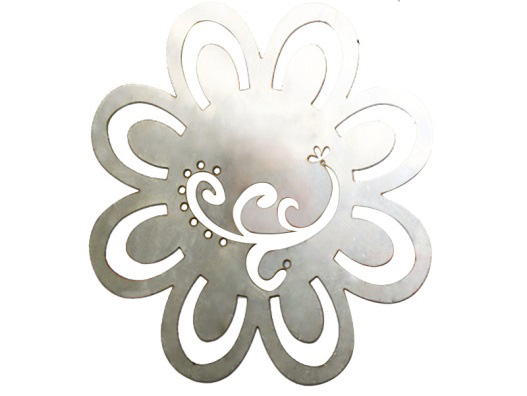

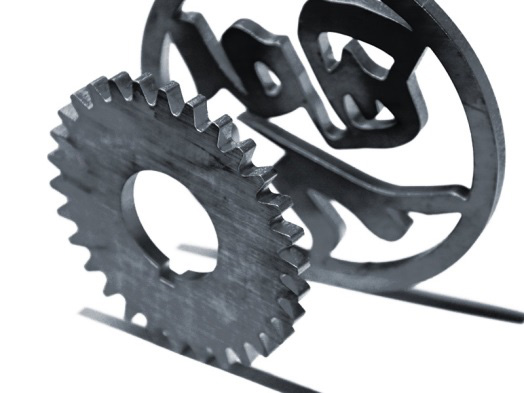

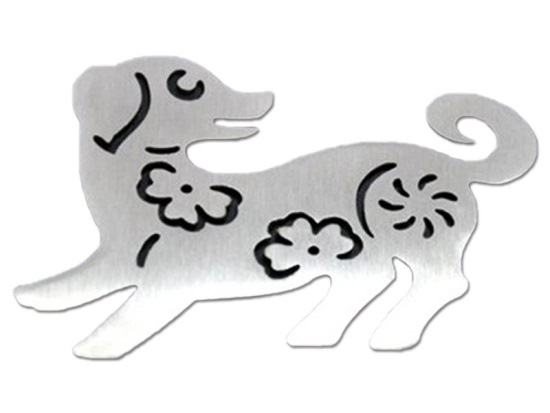

- A professional CNC system and cutting software supports CAD drawing and text programming, as well as allowing for cutting of various patterns and texts.
- High precision ball screw, and rack & pinion provides high operation stability and cutting speed.
- The fiber laser cutter is integrated with an electrical cabinet, which is equipped with easy-to-remove feet, making it convenient to install and move, and effectively saving space.
- With alarm function, abnormal operations and failure can be clearly displayed on the control panel, greatly reducing potential safety hazards.
- A dust removal and fume exhaust device is installed on the cutting area to quickly discharge any dust and exhaust gas, and thus, protect operators.
- Space and cost savings
Featuring with compact structure, the laser metal cutting machine occupies less space. This fiber laser cutter is a commonly used laser machine type because of its low investment and operation cost, and easy operation.
- Simple operation & Easy maintenance
Due to its simple operation, no matter skilled operators or beginners, can handle the laser machine very easily. Reduced maintenance time and cost are achieved thanks to its compact structure.

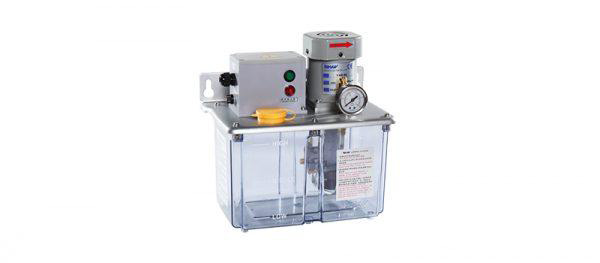

- Automatic lubricating system
The automatic oil injection system comes with 8 automatic lubrication points. With high automation, each of them will be automatically injected with 0.1CC lubricating oil every 3 hours.
- Safety assurance
The laser processing machine is equipped with air pressure monitoring device and electric proportional valve as standard to ensure safe and reliable machine operation.
| Model | GS-3015 | GS-4015 | GS-4020 | GS-6015 | GS-6020 | GS3015B | GS4015B | GS4020B | GS6015B | GS6020B | GS6025B |
| Maximum processing dimensions (mm) | 3000*1500 | 4000*1500 | 4000*2000 | 6000*1500 | 6000*2000 | 3000*1500 | 4000*1500 | 4000*2000 | 6000*1500 | 6000*2000 | 6000*2500 |
| X-axis travel | 1520 | 1520 | 2020 | 1520 | 2020 | 1520 | 1520 | 2020 | 1520 | 2020 | 2520 |
| Y-axis travel | 3020 | 4020 | 4020 | 6020 | 6020 | 3020 | 4020 | 4020 | 6020 | 6020 | 6020 |
| Z-axis travel | 80 | 80 | 80 | 80 | 80 | 100 | 100 | 100 | 100 | 100 | 100 |
| CNC system | Cypcut | Cypcut | Cypcut | Cypcut | Cypcut | Cypcut | Cypcut | Cypcut | Cypcut | Cypcut | Cypcut |
| Geometric positioning accuracy of X/Y axis | ±0.03mm/m | ±0.03mm/m | ±0.03mm/m | ±0.03mm/m | ±0.03mm/m | ±0.03mm/m | ±0.03mm/m | ±0.03mm/m | ±0.03mm/m | ±0.03mm/m | ±0.03mm/m |
| Repeatable positioning accuracy of X / Y axis(mm) | ±0.02mm/m | ±0.02mm/m | ±0.02mm/m | ±0.02mm/m | ±0.02mm/m | ±0.02mm/m | ±0.02mm/m | ±0.02mm/m | ±0.02mm/m | ±0.02mm/m | ±0.02mm/m |
| Maximum composite positioning speed of X/Y axis | 100m/min | 100m/min | 100m/min | 100m/min | 100m/min | 100m/min | 100m/min | 100m/min | 100m/min | 100m/min | 100m/min |
| Maximum combined acceleration of X/Y axis | 1G | 1G | 1G | 1G | 1G | 1.2G | 1.2G | 1.2G | 1.2G | 1.2G | 1.2G |
